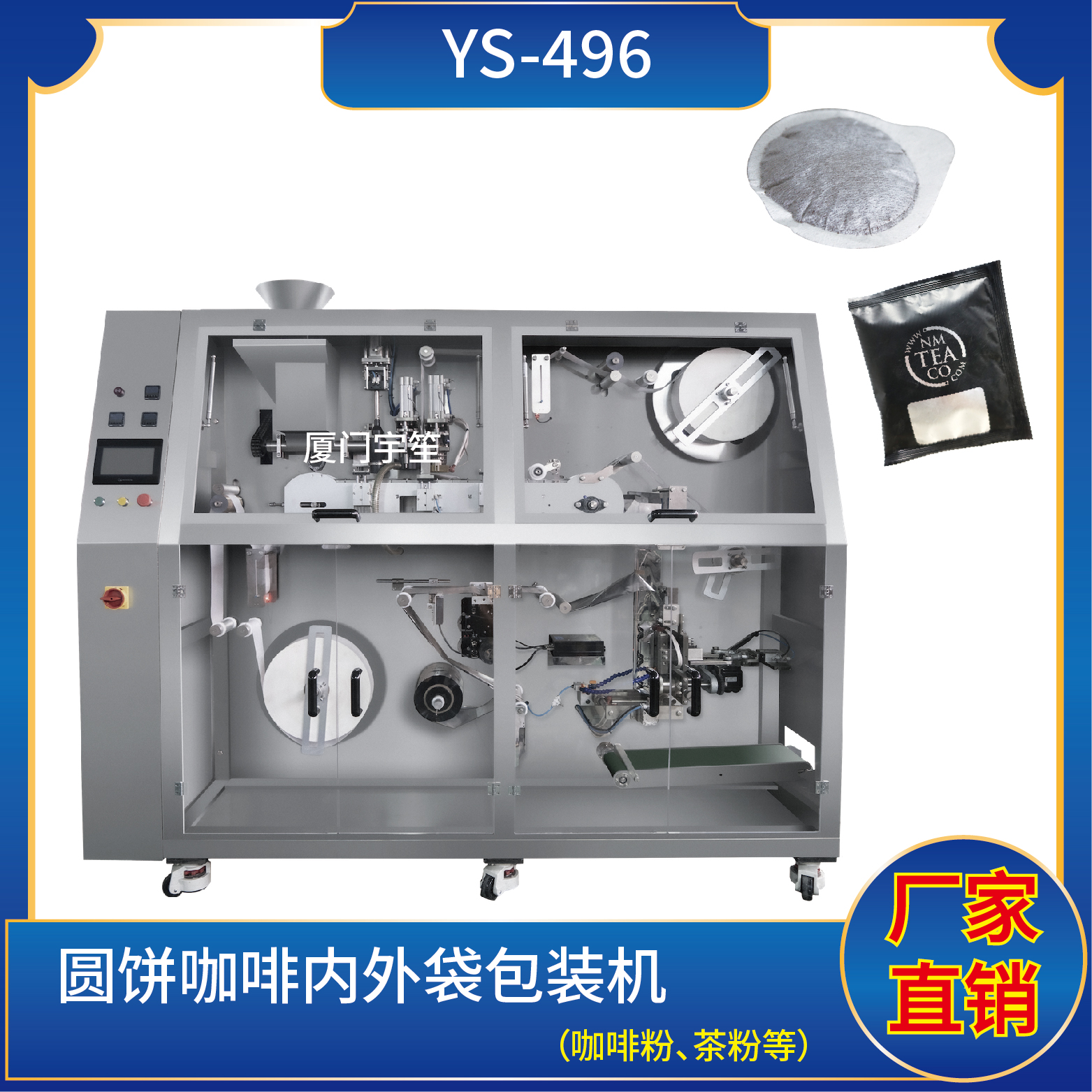

YS-496 咖啡餅內外袋包裝機
YS-496 Coffee pod packing machine
YS-496 咖啡餅內外袋包裝機
特 點 Characteristic
1、適用于茶粉、咖啡粉物料的內外袋一次性包裝。
The machine is suitable for the dual bag packing of powder-like materials, such as tea powder and coffee powder.

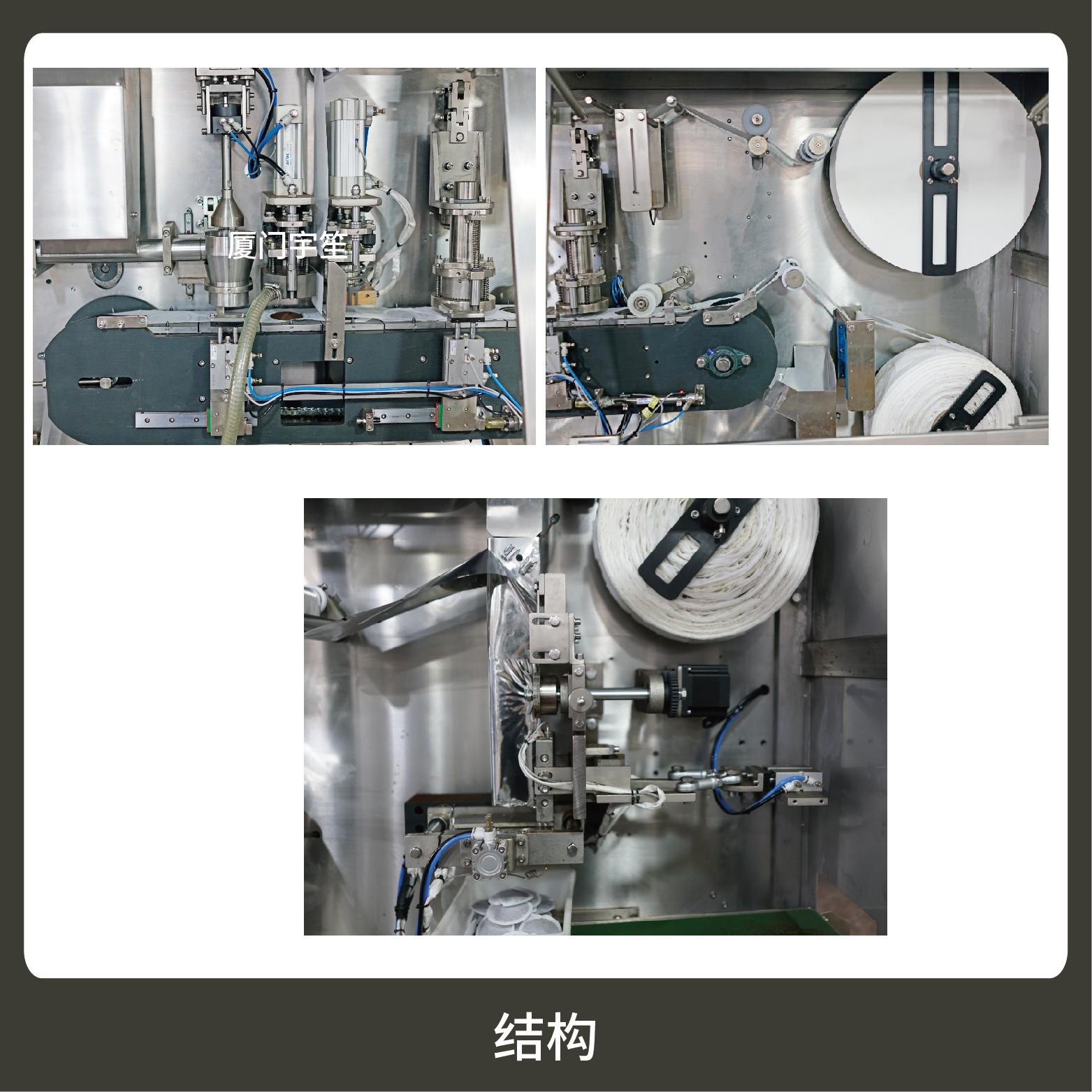

2、本機具有自動完成制袋、計量、充填、封合、分切等功能。
All the works of bag making,measuring,filling,sealing,cutting and other functions can be done automatically.
3、采用PLC控制器控制整機動作，觸摸屏操作界面，結構緊湊，人機界面設計，操作方便，便于調整，容易維護。
Overall machine movement is controlled by PLC,touch screen operation interface,compact structure, the man-machine interface design,easy to adjustment,easy to maintain.
4、所有可接觸物料部份為SUS304不銹鋼制作，保證產品的衛生可靠。
All parts contacting material made of SUS304 stainless steel to ensure health of products.

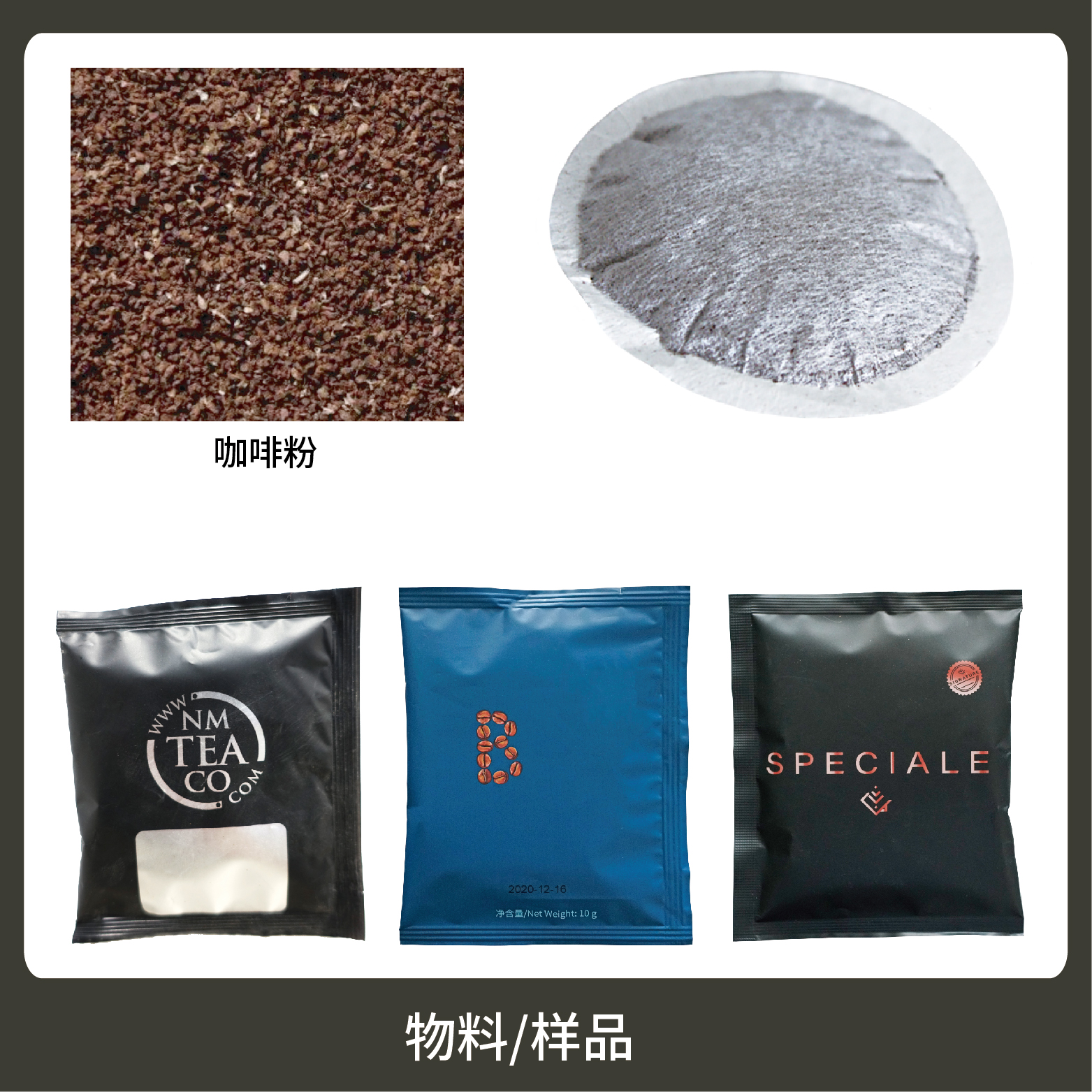

5、包裝材料：茶葉濾紙、復合膜。
Packing material：filter paper,composite membrane.
封口方式 Sealing Type
三邊封口Three sides sealing
技術參數
Technical Parameters
計量范圍：4 - 8g
Measuring Scope
內袋尺寸：(φ)：43 - 70 mm
Inner bag size
外袋尺寸：長 ( L ) ：100 mm
寬 ( W ) ：85 mm
Outer bag size
包裝速度：10 - 15 bags/min
Packing Speed
外型尺寸：2332 * 844 * 1989 mm
Dimension ( L * W * H )
整機重量：750 kg
Weight
總 功 率：AC220V / 50-60Hz / 3. kw
Total Power
氣 源：≥0.6Mpa
Gas source
1、適用于茶粉、咖啡粉物料的內外袋一次性包裝。
The machine is suitable for the dual bag packing of powder-like materials, such as tea powder and coffee powder.
2、本機具有自動完成制袋、計量、充填、封合、分切等功能。
All the works of bag making,measuring,filling,sealing,cutting and other functions can be done automatically.
3、采用PLC控制器控制整機動作，觸摸屏操作界面，結構緊湊，人機界面設計，操作方便，便于調整，容易維護。
Overall machine movement is controlled by PLC,touch screen operation interface,compact structure, the man-machine interface design,easy to adjustment,easy to maintain.
4、所有可接觸物料部份為SUS304不銹鋼制作，保證產品的衛生可靠。
All parts contacting material made of SUS304 stainless steel to ensure health of products.
5、包裝材料：茶葉濾紙、復合膜。
Packing material：filter paper,composite membrane.
計量范圍：4 - 8g
Measuring Scope
內袋尺寸：(φ)：43 - 70 mm
Inner bag size
外袋尺寸：長 ( L ) ：100 mm 寬 ( W ) ：85 mm
Outer bag size
包裝速度：10 - 15 bags/min
Packing Speed
外型尺寸：2332 * 844 * 1989 mm
Dimension ( L * W * H )
整機重量：750 kg
Weight
總 功 率：AC220V / 50-60Hz / 3. kw
Total Power
氣 源：≥0.6Mpa
Gas source
適用于茶粉、咖啡粉物料的內外袋一次性包裝。
The machine is suitable for the dual bag packing of powder-like materials, such as tea powder and coffee powder.
